REAR AUTO LEVELING SENSOR INSPECTION


id091800806800

1.  Connect three 1.5 V dry cell batteries in a series.

ar8uuw00002468

2.  Connect the positive pole of the battery to auto leveling sensor terminal A, and the negative pole to terminal D, then apply voltage of 4.5 V between terminals A and D.

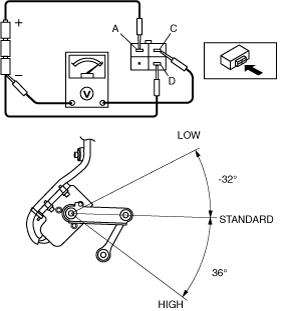

3.  Connect the tester as shown in the figure.

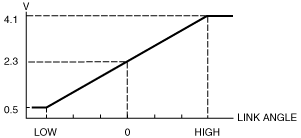

4.  Verify that the voltage fluctuates linearly in the 0.5 to 4.1 V range while the links are moved up and down slowly.

•  If not indicated in the graph, replace the rear auto leveling sensor.
