REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION
id091800806900
1. Disconnect the negative battery cable.
2. Jack up the vehicle and remove the wheel and tire.
3. Disconnect the connector.

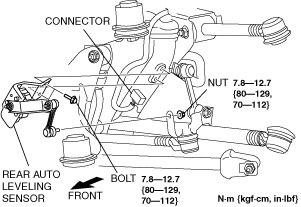

chu0918w174
|
4. Remove the bolts and nut, then remove the rear auto leveling sensor.
5. Install in the reverse order of removal.
