WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

id091900800300

1.  Remove the column cover. (SeeCOLUMN COVER REMOVAL/INSTALLATION.)

2.  Remove the ignition key illumination. (SeeIGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)

3.  Remove the windshield wiper and washer switch. (SeeWINDSHIELD WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the windshield wiper and washer switch is as indicated in the table.


Vehicles With Wiper and Washer Switch on Right Side

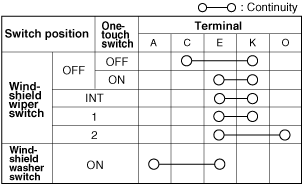

Vehicles without auto wiper system
•  If not as indicated in the table, replace the windshield wiper and washer switch.
ar8wzw00001084
ar8wzw00001085

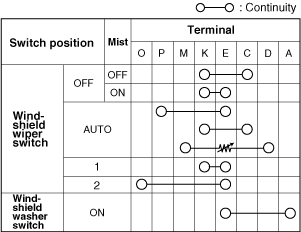

Vehicles with auto wiper system
•  If not as indicated in the table, replace the windshield wiper and washer switch.
ar8wzw00001086
ar8wzw00001087

Vehicles With Wiper and Washer Switch on Left Side

Vehicles without auto wiper system
•  If not as indicated in the table, replace the windshield wiper and washer switch.
ar8wzw00001088
ar8wzw00001089
Vehicles with auto wiper system
•  If not as indicated in the table, replace the windshield wiper and washer switch.
ar8uuw00001888
ar8uuw00001889
