RAIN SENSOR REMOVAL/INSTALLATION

id091900800500

Caution

•  The reflection rate at the moment the ignition switch is first turned on after replacing the rain sensor with a new one is stored as the condition indicating zero precipitation on the windshield. Therefore, before turning on the ignition switch, remove water and dirt from the windshield.

•  In addition, rain sensor initialization is performed for the following cases:(SeeRAIN SENSOR INITIALIZATION SETTING.)

―  The windshield is replaced and the rain sensor is reused.

―  The auto wiper system operates incorrectly.

1.  Disconnect the negative battery cable.

2.  Insert the fastener remover wrapped with protective tape into the notch of the rain sensor cover. Then disconnect the tab A by turning the fastener remover in the direction of the arrow.

ar8uuw00001896

3.  Remove the rain sensor cover in the direction of the arrow A.

ar8uuw00001897

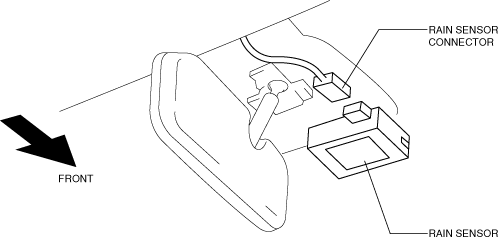

4.  Disconnect the rain sensor connector.

ar8uuw00001898

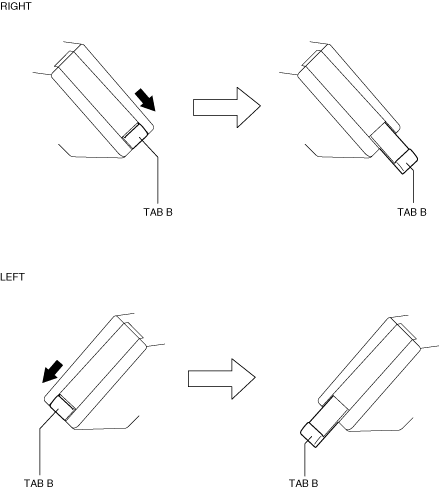

5.  Slide the tab B in the direction of the arrow and disconnect it while supporting the rain sensor with your hand.

ar8uuw00001899

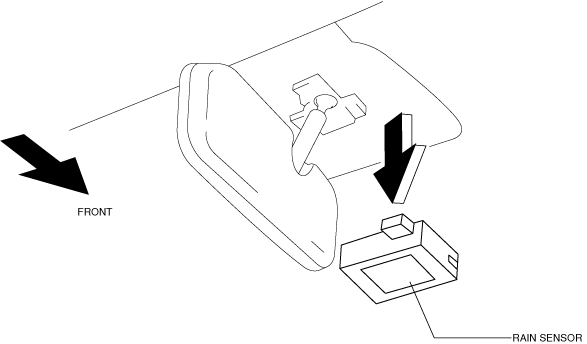

6.  Uninstall the rain sensor in the direction of the arrow.

ar8uuw00001900

7.  Install in the reverse order of removal.
