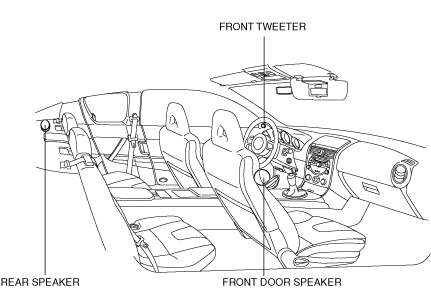

SPEAKER CONSTRUCTION
id092000107900
4 speaker type (Without Bose®)
• The front door speakers are located inside the front door trims.
• The rear speaker is located inside the rear package trim.
6 speaker type (Without Bose®)
• The front door speakers are located inside the front door trims.
• The rear speaker is located inside the rear package trim.
• The furont tweeter is located inside the inner garnish.
9 speaker type (With Bose®)
• The front door speakers are located inside the front door trims.
• The furont tweeter is located inside the inner garnish.
• The center speaker is located inside the speaker grille.
• The rear speaker is located inside the rear package trim.
• The rear tweeter is located inside the rear package trim.
