AUDIO UNIT CONSTRUCTION
id092000108900

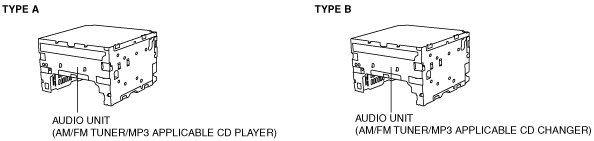

Structural view
Structural view
ar8wzn00000748
|
Terminal Layout and Signal
Car-navigation unit connector
|
Terminal |
Signal |
|
|---|---|---|
 |
1A
|
Front door speaker LH (+)
|
|
1B
|
B+
|
|
|
1C
|
Front door speaker LH (–)
|
|
|
1D
|
Front door speaker RH (+)
|
|
|
1E
|
—
|
|
|
1F
|
Front door speaker RH (–)
|
|
|
1G
|
—
|
|
|
1H
|
—
|
|
|
1I
|
Vehicle speed signal
|
|
|
1J
|
AMP control*1
|
|
|
1K
|
—
|
|
|
1L
|
DIM cancel
|
|
|
1M
|
—
|
|
|
1N
|
Audio control switch 1
|
|
|
1O
|
CAN (+)
|
|
|
1P
|
Audio control switch 2
|
|
|
1Q
|
CAN (–)
|
|
|
1R
|
ACC
|
|
|
1S
|
Rear speaker LH (+)
|
|
|
1T
|
AUDIOPILOT*1
|
|
|
1U
|
Rear speaker LH (–)
|
|
|
1V
|
Rear speaker RH (+)
|
|
|
1W
|
Power ground
|
|
|
1X
|
Rear speaker RH (–)
|
|
 |
2A
|
Power ground
|
|
2B
|
TEL (+)*2
|
|
|
2C
|
Input signal RH (+)
|
|
|
2D
|
Input signal RH (–)*3
|
|
|
2E
|
Input signal LH (+)
|
|
|
2F
|
Input signal LH (–)*3
|
|
|
2G
|
Signal ground*4
|
|
|
2H
|
—
|
|
|
2I
|
—
|
|
|
2J
|
TEL (–)*2
|
|
|
2K
|
—
|
|
|
2L
|
—
|
|
|
2M
|
AUX CONT
|
|
|
2N
|
—
|
|
|
2O
|
—
|
|
|
2P
|
—
|
|
