CENTER PANEL UNIT CONSTRUCTION/OPERATION

id092000195500

With Audio System

Constitution

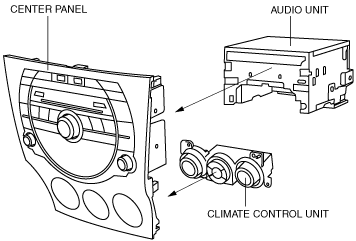

• A center panel unit has been adopted with the audio unit and climate control unit installed, and audio switch built into the center panel.

ar8uun00000021

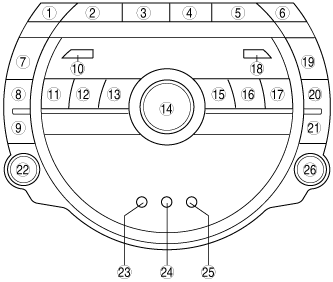

Position of switches

ar8jjn00000296

No.

With RDS (radio data system)

Without RDS (radio data system)

1

TA switch

FM1 switch

2

FM1/2 switch

FM2 switch

3

AM switch

4

CD switch

5

MEDIA switch

6

Outside temperature switch

7

PTY switch

SCAN switch

8

SEEK/TRACK switch (up)

DISC/FOLDER switch (up)

9

SEEK/TRACK switch (down)

DISC/FOLDER switch (down)

10

LOAD switch

11

RPT/preset switch 1

12

RDM/preset switch 2

13

Preset switch 3

14

POWER/VOLUME switch

15

Preset switch 4

16

Preset switch 5

17

Preset switch 6

18

EJECT switch

19

AUTO-M switch

20

DISC/FOLDER switch (up)

SEEK/TRACK switch (up)

21

DISC/FOLDER switch (down)

SEEK/TRACK switch (down)

22

TUNE/DISP switch

AUDIO CONT switch

23

H switch (clock)

24

M switch (clock)

25

12/24h switch (clock)

00 switch (clock)

26

AUDIO CONT switch

TUNE/DISP switch

No.	With RDS (radio data system)	Without RDS (radio data system)
1	TA switch	FM1 switch
2	FM1/2 switch	FM2 switch
3	AM switch
4	CD switch
5	MEDIA switch
6	Outside temperature switch
7	PTY switch	SCAN switch
8	SEEK/TRACK switch (up)	DISC/FOLDER switch (up)
9	SEEK/TRACK switch (down)	DISC/FOLDER switch (down)
10	LOAD switch
11	RPT/preset switch 1
12	RDM/preset switch 2
13	Preset switch 3
14	POWER/VOLUME switch
15	Preset switch 4
16	Preset switch 5
17	Preset switch 6
18	EJECT switch
19	AUTO-M switch
20	DISC/FOLDER switch (up)	SEEK/TRACK switch (up)
21	DISC/FOLDER switch (down)	SEEK/TRACK switch (down)
22	TUNE/DISP switch	AUDIO CONT switch
23	H switch (clock)
24	M switch (clock)
25	12/24h switch (clock)	00 switch (clock)
26	AUDIO CONT switch	TUNE/DISP switch

Action illumination

• The action illumination is linked to the audio switch operation during TNS ON to turn the audio panel illumination on and off.

ar8uun00000024

• The target operations of the action illumination are as follows:

― Volume adjustment

― Audio power supply ON/OFF

― Audio mode changing

― SEEK up/down

― TRACK up/down

― During TA switch operation

― Programming radio stations using the preset switch

― Searching for radio stations using the SCAN switch

With Car-navigation System

Constitution

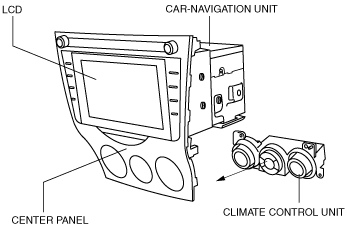

• A center panel unit has been adopted with the car-navigation unit and climate control unit installed, and LCD built into the center panel.

ar8uun00000022

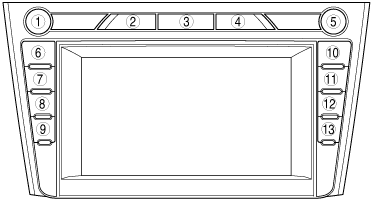

Position of switches

ar8jjn00000297

No.

With RDS (radio data system)

Without RDS (radio data system)

1

POWER/VOLUME switch

TUNE/AUDIO switch

2

TA switch

SCAN switch

3

Outside temperature switch

4

DISP switch

5

TUNE/AUDIO switch

POWER/VOLUME switch

6

LOAD/EJECT switch

7

SOURCE switch

8

SEEK/TRACK switch (up)

9

SEEK/TRACK switch (down)

10

MAP switch

11

RETURN switch

12

MENU switch

13

VOICE switch

No.	With RDS (radio data system)	Without RDS (radio data system)
1	POWER/VOLUME switch	TUNE/AUDIO switch
2	TA switch	SCAN switch
3	Outside temperature switch
4	DISP switch
5	TUNE/AUDIO switch	POWER/VOLUME switch
6	LOAD/EJECT switch
7	SOURCE switch
8	SEEK/TRACK switch (up)
9	SEEK/TRACK switch (down)
10	MAP switch
11	RETURN switch
12	MENU switch
13	VOICE switch
