CENTER PANEL UNIT DISASSEMBLY/ASSEMBLY

id092000800700

Caution

•  When disassembling the center panel unit, it could get scratched if it is placed directly on the ground. When disassembling the center panel unit, spread a soft cloth underneath to perform the work.

With Audio Unit

1.  Disassemble in the order indicated in the table.

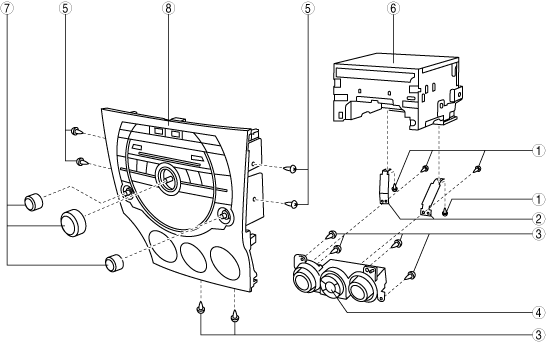

ar8uuw00001845

1	Screw
2	Bracket
3	Screw
4	Climate control unit
5	Screw
6	Audio unit
7	Knob
8	Center panel

2.  Assemble in the reverse order of disassembly.

With Car-navigation Unit

1.  Disassemble in the order indicated in the table.

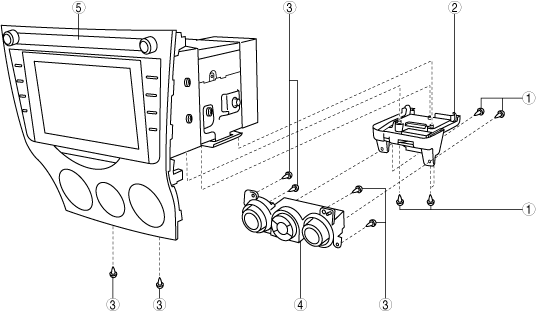

ar8jjw00001959

1	Screw
2	Bracket
3	Screw
4	Climate control unit
5	Car-navigation unit

2.  Assemble in the reverse order of disassembly.
