ANTENNA FEEDER LOCATION

id092000801800

Note

•  The antenna feeder is integrated with the vehicle wiring harness.

•  When installing a new antenna feeder, secure it to the vehicle wiring harness along the installation route of the old antenna feeder.

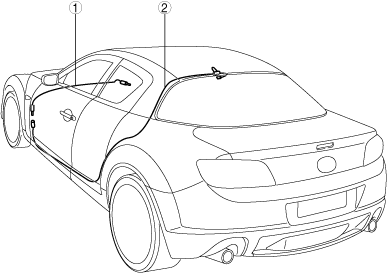

ar8wzw00000895

1	Antenna feeder No.1
2	Antenna feeder No.2
