IGNITION SWITCH INSPECTION

id092100800100

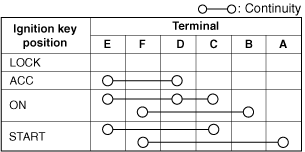

1.  Verify that the continuity between the ignition switch terminals is as indicated in the table.

bhj0921w012

•  If not as indicated in the table, replace the ignition switch.

a6e8110w114
