INFORMATION DISPLAY CONSTRUCTION/OPERATION

id092200100400

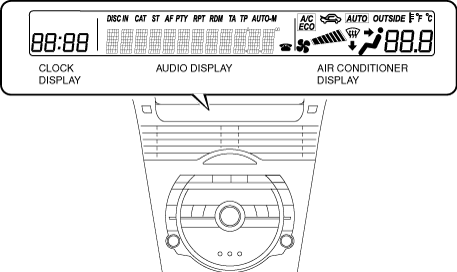

Display Function

•  Displays information for the audio system (such as volume and frequency) and air conditioner system (such as air flow volume, set temperature and mode) based on the signals from the center panel unit.
ar8wzn00000281

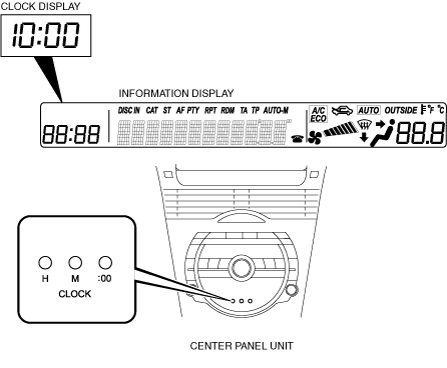

Clock function

•  A clock is integrated.
•  Time can be adjusted with the buttons on the center panel module.
ar8wzn00000282

Input/output Check Function

•  An input/output check function has been adopted which performs signal input to the display and examines the LCD according to the micro-computer built into the information display.

Check code

•  When the signal output part indicated in the table below is activated, the micro-computer performs self-diagnosis of the signal input to the information display. Also, inspection of segments and dots is possible by illuminating the entire LCD.

Check code

Signal output part

Malfunction location
01
Information display
CAN system communication error
02
•  Audio unit
•  Climate control unit
Communication error to signal output part
04
Light switch (TNS position)
Light switch
06
Ignition switch
Ignition switch
07
Dimmer cancel switch
Dimmer cancel switch
—
LCD
LCD


Check code display

•  The check code and inspection display are displayed in the LCD clock and audio display areas.
ar8uun00000164
