INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE

id092200801300

Note

•  In this mode, it is possible to verify the items in the following chart.

Check Code Table

Check code	Check item	Related items
01	Information display	CAN system •  DTC U2516: CAN system communication error
02	•  Audio unit •  Climate control unit	CAN system •  DTC U0184: Communication error to audio unit •  DTC U0164: Communication error to climate control unit
04	Light switch	•  TNS relay •  Light switch
06	Ignition switch	Ignition switch
07	Dimmer cancel switch (Instrument cluster)	•  Instrument cluster •  Related wiring harness
—	LCD	LCD

Note

•  The check codes are displayed in numerical order. (While performing the inspection, if you want to inspect a check code with a number smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)

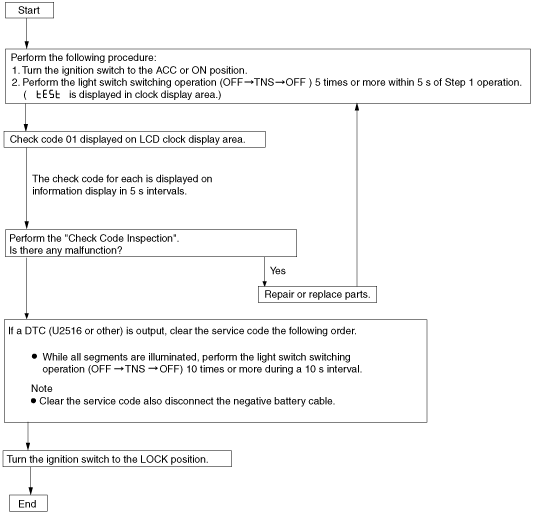

ar8uuw00001750

Check Code Inspection

Check code 01

Check code 01	CAN system
DISPLAY	ACTION
	CAN system of information display is normal.
	CAN system communication error. (DTC U2516) (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D.)].) (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)].)

Check code 02

Check code 02	•  Communication status to audio unit •  Communication status to climate control unit
INSPECTION CONDITION	DISPLAY		ACTION
If there is a malfunction, the diagnostic results are displayed once each in the order of audio unit and climate control unit.			All communications are normal.
	Audio unit		Communication to audio unit is normal.
			Communication error to audio unit. (DTC U0184) (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D.)].) (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)].)
			Vehicle without audio unit.
	Climate control unit		Communication to climate control unit is normal.
			Communication error to climate control unit. (DTC U0164) (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (L.H.D.)].) (See FOREWORD [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)].)
			Vehicle without climate control unit.

Check code 04

Check code 04		TNS ON/OFF signal
STEP	INSPECTION CONDITION	DISPLAY	ACTION
1	Turn the light switch to the TNS position.		Go to the next step.
			Verify that the voltage of information display terminal C is B+. •  If the voltage is as specified, replace the information display. •  If the voltage is not as specified, inspect the following parts: ―  Light switch ―  TNS relay ―  Wiring harness (Light switch—TNS relay—information display)
2	Turn the light switch off.		Verify that the voltage of the information display terminal C is 1.0 V or less. •   If the voltage is as specified, replace the information display. •  If the voltage is not as specified, inspect the following parts: ―  Light switch ―  TNS relay ―  Wiring harness (Light switch—TNS relay—information display)
			Input signal to the information display is normal.

Check code 06

Check code 06		Ignition switch ON/OFF signal
STEP	INSPECTION CONDITION	DISPLAY	ACTION
1	Turn the ignition switch to the ON position.		Go to the next step.
			Verify that the voltage of information display terminal E is B+. •  If the voltage is as specified, replace the information display. •  If the voltage is not as specified, inspect the following parts: ―  Ignition switch ―  Wiring harness (Battery—ignition switch—information display)
2	Turn the ignition switch to the ACC position.		Verify that the voltage of the information display terminal E is 1.0 V or less. •   If the voltage is as specified, replace the information display. •  If the voltage is not as specified, inspect the following parts: ―  Ignition switch ―  Wiring harness (Battery—ignition switch—information display)
			Input signal to the information display is normal.

Check code 07

Check code 07		Dimmer cancel ON/OFF signal
STEP	INSPECTION CONDITION	DISPLAY	ACTION
1	Panel light control switch turned to dimmer cancel ON		Go to the next step.
			Verify that the voltage of information display terminal F is B+. •  If the voltage is as specified, replace the information display. •  If the voltage is not as specified, inspect the following parts: ―  Instrument cluster ―  Wiring harness (Information display—instrument cluster)
2	Panel light control switch turned to dimmer cancel OFF		Verify that the voltage of the information display terminal F is 1.0 V or less. •   If the voltage is as specified, replace the information display. •  If the voltage is not as specified, inspect the following parts: ―  Instrument cluster ―  Wiring harness (Information display—instrument cluster)
			Input signal to the information display is normal.

LCD

Check code —		LCD
DISPLAY		ACTION
		All segments and dots illuminated.	LCD is normal.
		Except above	Replace the information display.
