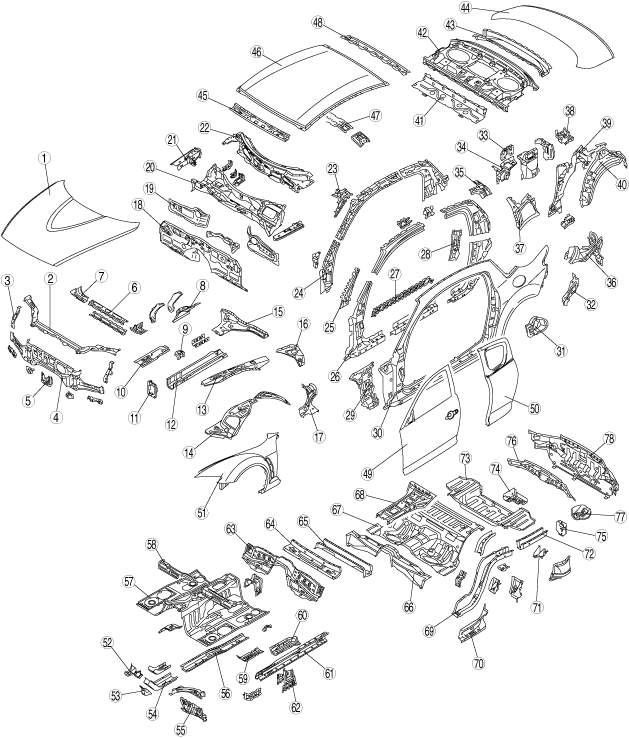

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700

ar8uub00000001

x:Applied
-:Not applied

No.

Part Name

High- tension steel

Rust proof steel

Thickness

(mm)

{in}
1
Bonnet (*)
-
-
0.90
{0.035}
2
Radiator shroud upper panel
-
x
0.80
{0.031}
3
Radiator shroud side stay
-
x
0.70
{0.028}
4
Radiator shroud lower panel
-
x
0.70
{0.028}
5
Bonnet rock bracket
-
x
0.80
{0.031}
6
Crossmember No.1
Fr
x
x
0.80
{0.031}
Rr
x
x
0.70
{0.028}
7
Crossmember No.1 side bracket
x
x
0.80
{0.031}
8
Suspension housing
Upper
x
x
1.40
{0.055}
Lower
x
x
2.00
{0.079}
9
ABS HU/CM bracket
x
x
1.60
{0.063}
10
Front side frame outer
x
x
1.40
{0.055}
11
Front bumper bracket
x
x
2.60
{0.102}
12
Front side frame inner
x
x
2.00
{0.079}
13
Apron reinforcement upper
x
x
0.90
{0.035}
14
Wheel apron panel
-
x
0.65
{0.026}
15
Front side frame rear reinforcement
x
x
2.00
{0.079}
16
Apron reinforcement lower
x
x
0.75
{0.030}
17
Frame reinforcement
x
x
1.60
{0.063}
18
Dash lower panel
-
x
0.80
{0.031}
19
Dash lower member
x
-
1.60
{0.063}
20
Dash cowl panel
-
x
0.65
{0.026}
21
Cowl upper plate
x
x
1.00
{0.039}
22
Cowl panel
-
x
0.65
{0.026}
23
Front pillar reinforcement
x
-
1.20
{0.047}
24
Side panel inner
Fr
x
-
2.00
{0.079}
Ctr
x
-
1.40
{0.055}
Rr
x
-
1.20
{0.047}
25
Hinge reinforcement
x
-
1.60
{0.063}
26
Side panel reinforcement front
Upper
x
-
1.60
{0.063}
Lower
x
-
1.80
{0.071}
Side panel reinforcement center
x
-
1.20
{0.047}
Side panel reinforcement rear
Upper
x
-
1.20
{0.047}
Lower
x
-
1.00
{0.039}
27
Side sill gusset
-
-
0.90
{0.035}
28
Rear hinge reinforcement
Upper
x
-
1.20
{0.047}
Lower
x
-
2.30
{0.091}
29
Cowl side reinforcement
x
x
1.20
{0.047}
30
Side panel outer

x
0.70
{0.028}
31
Filler box
-
x
0.70
{0.028}
32
Rear fender lower panel
-
x
0.70
{0.028}
33
Rear suspension housing upper
x
-
1.40
{0.055}
34
Package reinforcement
x
-
0.80
{0.031}
35
Roof rail reinforcement
x
-
0.80
{0.031}
36
Rear fender rain rail
-
x
0.70
{0.028}
37
C-pillar reinforcement
x
-
0.90
{0.035}
38
Package gusset
-
-
0.80
{0.031}
39
Rear pillar inner
-
x
0.70
{0.028}
40
Wheel house inner
-
x
0.65
{0.026}
41
Package member front
-
-
0.70
{0.028}
42
Package tray
-
-
0.55
{0.022}
43
Package member rear
-
-
0.60
{0.024}
44
Trunk lid panel
-
-
0.75
{0.030}
45
Front header
-
-
0.90
{0.035}
46
Roof panel
-
-
0.85
{0.033}
47
Roof reinforcement
-
-
0.80
{0.031}
48
Rear header
-
-
0.90
{0.035}
49
Front door
-
x
0.70
{0.028}
50
Rear door (*)
-
-
0.90
{0.035}
51
Front fender panel
-
x
0.75
{0.030}
52
Front frame rear upper
x
x
1.60
{0.063}
53
Lower arm bracket
-
x
2.30
{0.091}
54
Front frame rear
x
x
1.60
{0.063}
55
Torque box
-
x
1.20
{0.047}
56
Front B-frame
x
x
1.40
{0.055}
57
Front Floor pan
-
x
0.65
{0.026}
58
Crossmember No.2
x
-
1.40
{0.055}
59
Front floor reinforcement
x
x
1.20
{0.047}
60
Crossmember No.2.5
-
x
1.20
{0.047}
61
Side sill inner
x
x
1.40
{0.055}
62
Side sill reinforcement
x
-
1.80
{0.071}
63
Crossmember No.3
RH
x
x
1.00
{0.039}
Ctr
-
x
1.60
{0.063}
LH
x
x
1.00
{0.039}
64
Crossmember No.4
x
x
1.00
{0.039}
65
Crossmember No.5
x
x
0.90
{0.035}
66
Crossmember No.3 front
-
x
1.20
{0.047}
67
Center floor pan
-
x
0.65
{0.026}
68
Tunnel reinforcement rear
-
-
0.90
{0.035}
69
Rear side frame
x
x
1.40
{0.055}
70
Side sill inner rear
x
x
1.40
{0.055}
71
Rear bumper bracket
x
x
1.20
{0.047}
72
Rear side frame rear
x
x
1.40
{0.055}
73
Rear floor pan
-
x
0.65
{0.026}
74
Hook bracket
x
x
1.20
{0.047}
75
Rear side reinforcement
x
x
1.80
{0.071}
76
Rear end member
-
-
0.65
{0.026}
77
Anchor reinforcement
-
x
1.80
{0.071}
78
Rear end panel
-
x
0.60
{0.024}

(*):Material of Bonnet and rear door are aluminum.
