FRONT SIDE FRAME (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008606100

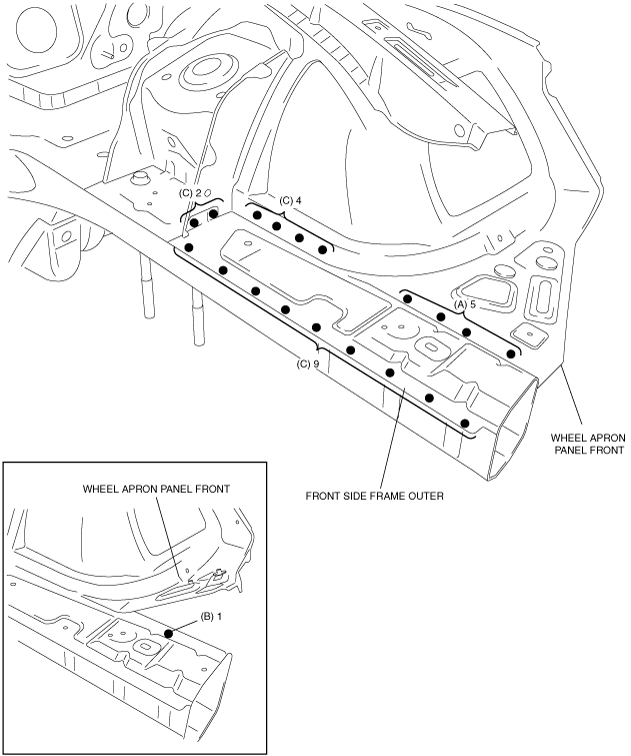

1.  To facilitate removal of the front side frame outer, drill the five weld locations indicated by (A) and bend the wheel apron panel front upward.

2.  Drill the one weld locations indicated by (B) and 15 weld locations (C) then remove the front side frame outer.

ar8uub00000033
