REAR FENDER RAIN RAIL AND CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008611900

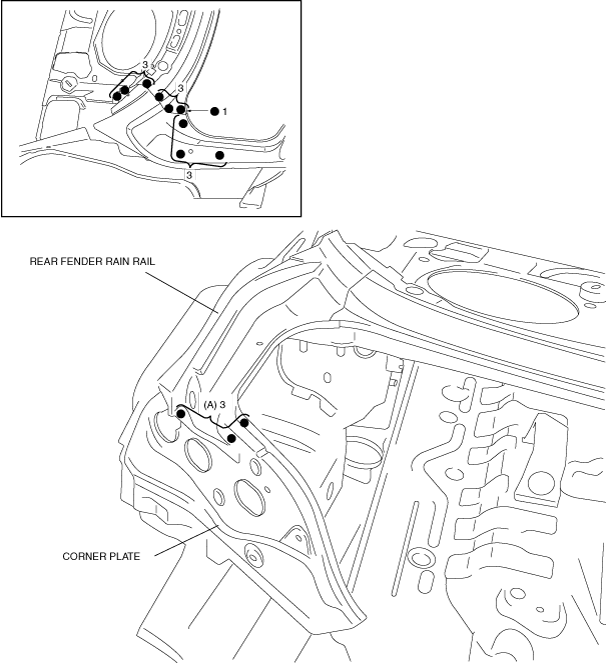

1.  Remove the rear fender rain rail and corner plate.

Note

•  When removing the rear fender rain rail and the corner plate separately, drill three weld locations indicated by (A).

ar8uub00000063
