COWL SIDE REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008741700

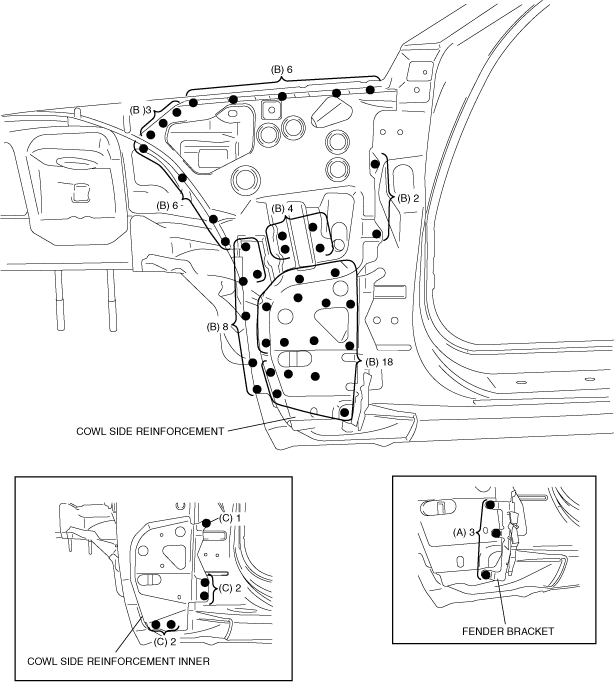

1.  Drill the three weld locations indicated by (A) and remove the fender bracket.

2.  Drill the 47 weld locations indicated by (B) and remove the cowl side reinforcement.

3.  Drill the five weld locations indicated by (C) and remove the cowl side reinforcement inner.
