REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator (shaded area) is flammable.

Note

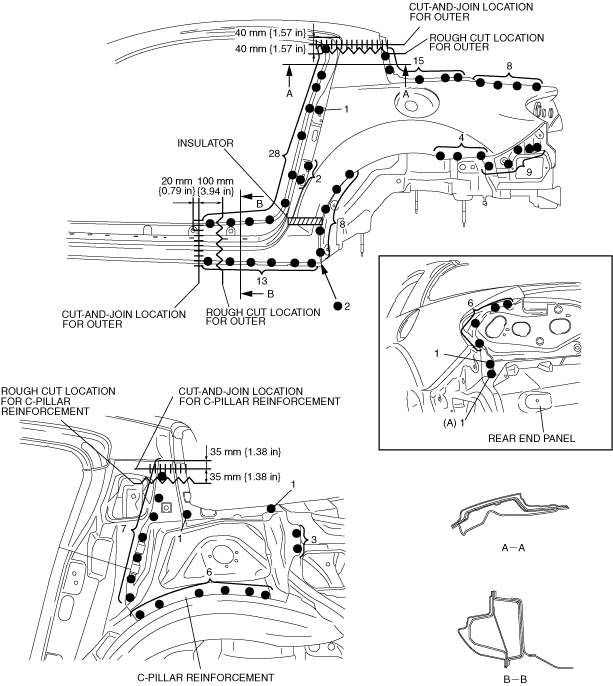

•  For weld location (A), partially bend back the rear end panel before drilling.

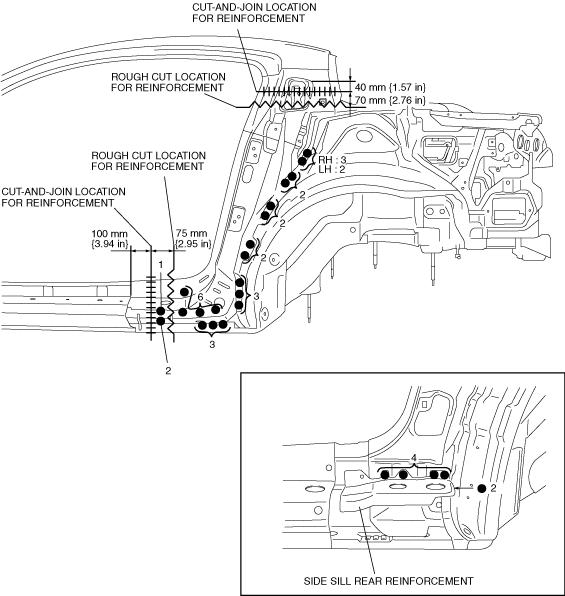

1.  The rear fender panel and the rear pillar inner are joined with glue at the wheel arch line. Use a chisel or other to separate the rear fender panel from the rear pillar inner, then remove the rear fender panel.

ar8uub00000057

ar8uub00000058
