RADIATOR SHROUD LOWER PANEL REMOVAL [PANEL REPLACEMENT]

id098008965700

1.  Remove the radiator shroud lower panel.

Note

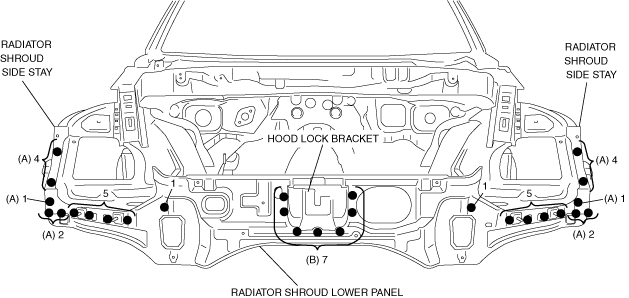

•  When removing the radiator shroud side stay and the hood lock bracket separately, drill the 14 weld locations indicated by (A) and the seven weld locations indicated by (B).

ar8uub00000015
