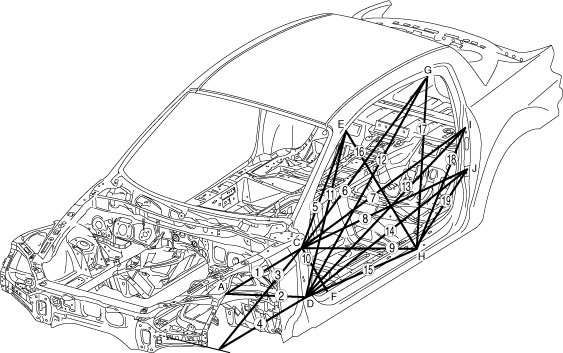

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010673100

ar8jjb00000081

ar8jjb00000082

Measured location

Dimensions mm {in}

1

785 {30.91}

2

840 {33.07}

3

1,036 {40.79}

4

1,015 {39.96}

5

901 {35.47}

6

1,686 {66.38}

7

1,706 {67.17}

8

1,653 {65.08}

9

1,230 {48.43}

10

484 {19.06}

11

1,103 {43.43}

12

1,809 {71.22}

13

1,765 {69.49}

14

1,667 {65.63}

15

1,162 {45.75}

16

993 {39.09}

17

1,039 {40.91}

18

788 {31.02}

19

592 {23.31}

Measured location	Dimensions mm {in}
1	785 {30.91}
2	840 {33.07}
3	1,036 {40.79}
4	1,015 {39.96}
5	901 {35.47}
6	1,686 {66.38}
7	1,706 {67.17}
8	1,653 {65.08}
9	1,230 {48.43}
10	484 {19.06}
11	1,103 {43.43}
12	1,809 {71.22}
13	1,765 {69.49}
14	1,667 {65.63}
15	1,162 {45.75}
16	993 {39.09}
17	1,039 {40.91}
18	788 {31.02}
19	592 {23.31}
