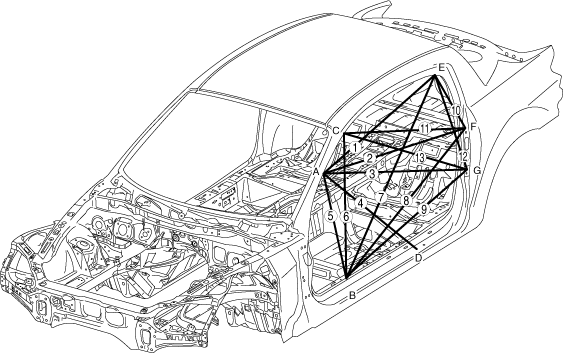

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010673200

ar8jjb00000083

ar8jjb00000084

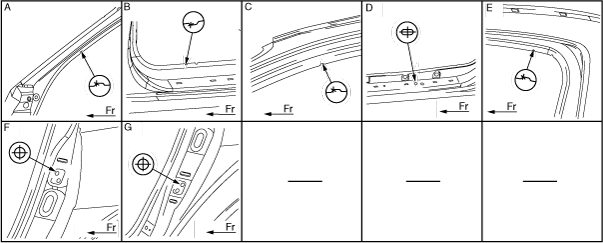

Measured location

Dimensions mm {in}

1

1,217 {47.91}

2

1,310 {51.57}

3

1,315 {51.77}

4

1,045 {41.14}

5

681 {26.81}

6

964 {37.95}

7

1,571 {61.85}

8

1,492 {58.74}

9

1,376 {54.17}

10

403 {15.87}

11

1,016 {40.00}

12

631 {24.84}

13

1,080 {42.52}

Measured location	Dimensions mm {in}
1	1,217 {47.91}
2	1,310 {51.57}
3	1,315 {51.77}
4	1,045 {41.14}
5	681 {26.81}
6	964 {37.95}
7	1,571 {61.85}
8	1,492 {58.74}
9	1,376 {54.17}
10	403 {15.87}
11	1,016 {40.00}
12	631 {24.84}
13	1,080 {42.52}
