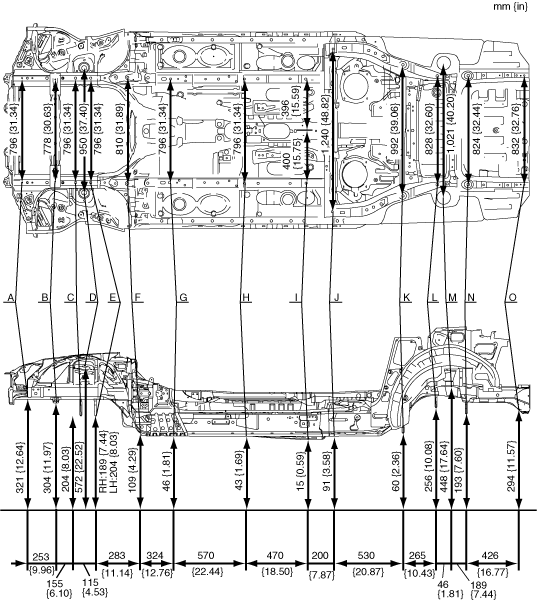

UNDERBODY FLAT-PLANE DIMENSIONS [DIMENSIONS]

id098010740400

ar8uub00000008

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}

A

Front side frame standard hole

ø9.8 {0.39}

B

Crossmember No.1 standard hole

ø7 {0.28}

C

Front crossmember mounting bolt

M14 {0.55}

D

Front suspension mounting block

ø44 {1.73}

E

Front crossmember mounting bolt

M14 {0.55}

F

Front frame rear standard hole

ø16 {0.63}

G

Front frame rear standard hole

16 × 20

{0.63 × 0.79}

H

Front B frame standard hole

M14 {0.55}

I

Front B frame standard hole

ø20 {0.79}

J

Rear side frame standard hole

ø16 {0.63}

K

Rear crossmember mounting bolt

M14 {0.55}

L

Rear crossmember mounting bolt

M14 {0.55}

M

Rear suspension mounting block

ø97 {3.82}

N

Rear crossmember mounting bolt

M14 {0.55}

O

Bumper bracket standard hole

14 × 10

{0.55 × 0.39}

Point symbol	Designation	Hole diameter or bolt or nut size mm {in}
A	Front side frame standard hole	ø9.8 {0.39}
B	Crossmember No.1 standard hole	ø7 {0.28}
C	Front crossmember mounting bolt	M14 {0.55}
D	Front suspension mounting block	ø44 {1.73}
E	Front crossmember mounting bolt	M14 {0.55}
F	Front frame rear standard hole	ø16 {0.63}
G	Front frame rear standard hole	16 × 20
G	Front frame rear standard hole	{0.63 × 0.79}
H	Front B frame standard hole	M14 {0.55}
I	Front B frame standard hole	ø20 {0.79}
J	Rear side frame standard hole	ø16 {0.63}
K	Rear crossmember mounting bolt	M14 {0.55}
L	Rear crossmember mounting bolt	M14 {0.55}
M	Rear suspension mounting block	ø97 {3.82}
N	Rear crossmember mounting bolt	M14 {0.55}
O	Bumper bracket standard hole	14 × 10
O	Bumper bracket standard hole	{0.55 × 0.39}
