UNDERBODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010740500

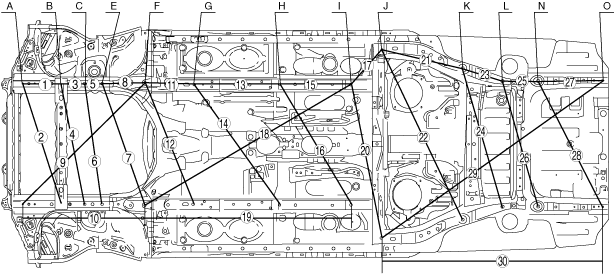

ar8uub00000009

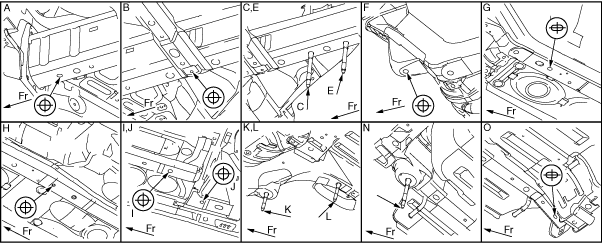

ar8uub00000010

Measured location

Dimensions mm {in}

1

254 {10.00}

2

827 {32.56}

3

184 {7.24}

4

808 {31.81}

5

RH:116 {4.57}, LH:115 {4.53}

6

804 {31.65}

7

RH:855 {33.66}, LH:857 {33.74}

8

RH:294 {11.57}, LH:299 {11.77}

9

1,157 {45.55}

10

833 {32.80}

11

330 {12.99}

12

868 {34.17}

13

570 {22.44}

14

979 {38.54}

15

471 {18.54}

16

RH:923 {36.34}, LH:927 {36.50}

17

RH:307 {12.09}, LH:310 {12.20}

18

RH:1,585 {62.40}, LH:1,587 {62.48}

19

1,367 {53.82}

20

RH:1,042 {41.02}, LH:1,039 {40.91}

21

545 {21.46}

22

1,236 {48.66}

23

339 {13.35}

24

968 {38.11}

25

243 {9.57}

26

861 {33.90}

27

438 {17.24}

28

937 {36.89}

29

1,799 {70.83}

30

1,485 {58.46}

Measured location	Dimensions mm {in}
1	254 {10.00}
2	827 {32.56}
3	184 {7.24}
4	808 {31.81}
5	RH:116 {4.57}, LH:115 {4.53}
6	804 {31.65}
7	RH:855 {33.66}, LH:857 {33.74}
8	RH:294 {11.57}, LH:299 {11.77}
9	1,157 {45.55}
10	833 {32.80}
11	330 {12.99}
12	868 {34.17}
13	570 {22.44}
14	979 {38.54}
15	471 {18.54}
16	RH:923 {36.34}, LH:927 {36.50}
17	RH:307 {12.09}, LH:310 {12.20}
18	RH:1,585 {62.40}, LH:1,587 {62.48}
19	1,367 {53.82}
20	RH:1,042 {41.02}, LH:1,039 {40.91}
21	545 {21.46}
22	1,236 {48.66}
23	339 {13.35}
24	968 {38.11}
25	243 {9.57}
26	861 {33.90}
27	438 {17.24}
28	937 {36.89}
29	1,799 {70.83}
30	1,485 {58.46}
