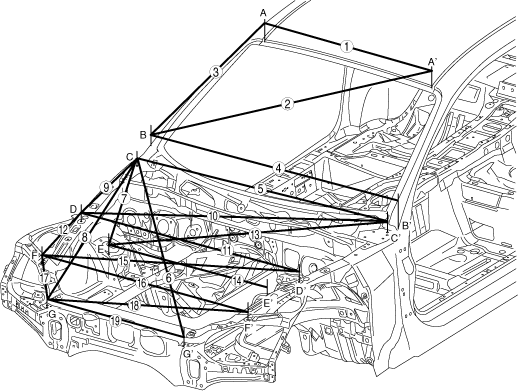

FRONT BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010740600

ar8uub00000011

ar8uub00000012

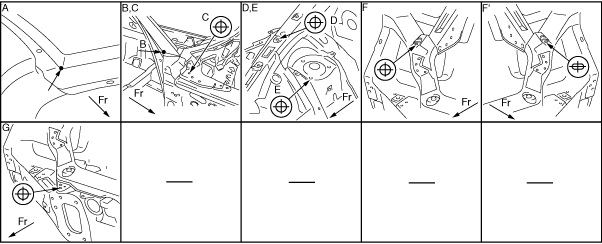

Measured location

Dimensions mm {in}

1

954 {37.56}

2

1,350 {53.15}

3

676 {26.61}

4

1,430 {56.30}

5

1,406 {55.35}

6

1,604 {63.15}

7

675 {26.57}

8

1,214 {47.80}

9

584 {22.99}

10

1,450 {57.09}

11

1,254 {49.37}

12

358 {14.09}

13

1,313 {51.69}

14

903 {35.55}

15

1,266 {49.84}

16

1,176 {46.30}

17

314 {12.36}

18

1,010 {39.76}

19

783 {30.83}

Measured location	Dimensions mm {in}
1	954 {37.56}
2	1,350 {53.15}
3	676 {26.61}
4	1,430 {56.30}
5	1,406 {55.35}
6	1,604 {63.15}
7	675 {26.57}
8	1,214 {47.80}
9	584 {22.99}
10	1,450 {57.09}
11	1,254 {49.37}
12	358 {14.09}
13	1,313 {51.69}
14	903 {35.55}
15	1,266 {49.84}
16	1,176 {46.30}
17	314 {12.36}
18	1,010 {39.76}
19	783 {30.83}
