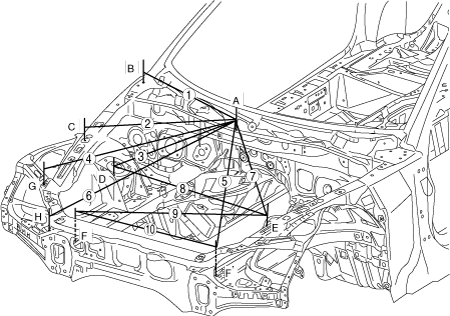

FRONT BODY STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]

id098010740700

ar8jjb00000077

ar8jjb00000078

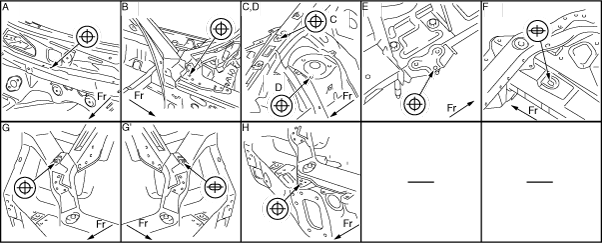

Measured location

Dimensions mm {in}

1

760 {29.92}

2

696 {27.40}

3

585 {23.03}

4

882 {34.72}

5

868 {34.17}

6

983 {38.70}

7

512 {20.16}

8

758 {29.84}

9

816 {32.13}

10

796 {31.34}

Measured location	Dimensions mm {in}
1	760 {29.92}
2	696 {27.40}
3	585 {23.03}
4	882 {34.72}
5	868 {34.17}
6	983 {38.70}
7	512 {20.16}
8	758 {29.84}
9	816 {32.13}
10	796 {31.34}
