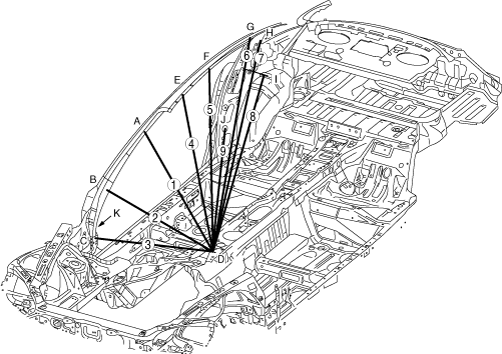

ROOM STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]

id098010743300

ar8jjb00000085

ar8jjb00000086

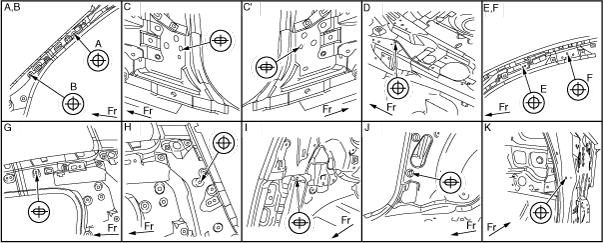

Measured location

Dimensions mm {in}

1

RH:892 {35.12}, LH:839 {33.03}

2

RH:800 {31.50}, LH:734 {28.90}

3

RH:788 {31.02}, LH:711 {27.99}

4

RH:1,160 {45.67}, LH:1,125 {44.29}

5

RH:1,367 {53.82}, LH:1,337 {52.64}

6

RH:1,618 {63.70}, LH:1,593 {62.72}

7

RH:1,886 {74.25}, LH:1,862 {73.31}

8

RH:1,742 {68.58}, LH:1,710 {67.32}

9

RH:1,529 {60.20}, LH:1,490 {58.66}

K-K’

1,512 {59.53}

Measured location	Dimensions mm {in}
1	RH:892 {35.12}, LH:839 {33.03}
2	RH:800 {31.50}, LH:734 {28.90}
3	RH:788 {31.02}, LH:711 {27.99}
4	RH:1,160 {45.67}, LH:1,125 {44.29}
5	RH:1,367 {53.82}, LH:1,337 {52.64}
6	RH:1,618 {63.70}, LH:1,593 {62.72}
7	RH:1,886 {74.25}, LH:1,862 {73.31}
8	RH:1,742 {68.58}, LH:1,710 {67.32}
9	RH:1,529 {60.20}, LH:1,490 {58.66}
K-K’	1,512 {59.53}
