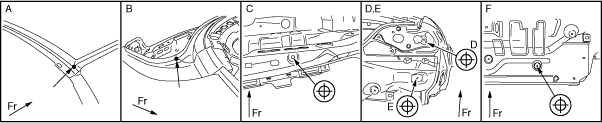

REAR BODY STRAIGHT-LINE DIMENSIONS [DIMENSIONS]

id098010748200

ar8jjb00000091

ar8jjb00000092

Measured location

Dimensions mm {in}

1

885 {34.84}

2

1,120 {44.09}

3

592 {23.31}

4

1,022 {40.24}

5

849 {33.43}

6

491 {19.33}

7

470 {18.50}

8

1,268 {49.92}

9

1,253 {49.33}

10

198 {7.80}

11

RH:968 {38.11}, LH:952 {37.48}

12

RH:576 {22.68}, LH:574 {22.60}

13

1,207 {47.52}

14

RH:873 {34.37}, LH:853 {33.58}

15

RH:433 {17.05}, LH:427 {16.81}

16

467 {18.39}

Measured location	Dimensions mm {in}
1	885 {34.84}
2	1,120 {44.09}
3	592 {23.31}
4	1,022 {40.24}
5	849 {33.43}
6	491 {19.33}
7	470 {18.50}
8	1,268 {49.92}
9	1,253 {49.33}
10	198 {7.80}
11	RH:968 {38.11}, LH:952 {37.48}
12	RH:576 {22.68}, LH:574 {22.60}
13	1,207 {47.52}
14	RH:873 {34.37}, LH:853 {33.58}
15	RH:433 {17.05}, LH:427 {16.81}
16	467 {18.39}
