OUTPUT SHAFT COMPONENT INSPECTION

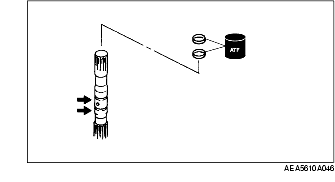

1. Install new seal rings.

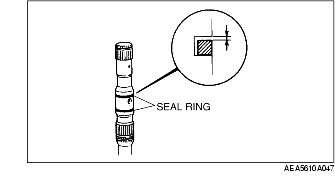

2. Measure the clearance between the seal rings and the seal ring grooves.

• If the clearance is out of the specification, replace the output shaft.

Specification

0.10-0.25 mm {0.0040-0.0098 in}
