OIL PUMP ASSEMBLY

1. Install a new oil seal to the oil pump housing using the SSTs.

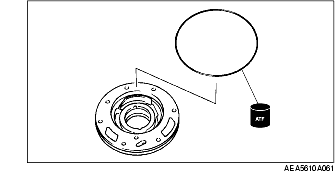

2. Install a new O-ring to the oil pump housing.

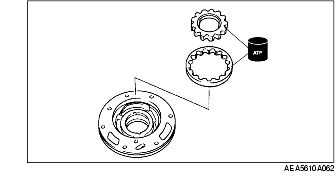

3. Align the marks and install the outer and inner rotors.

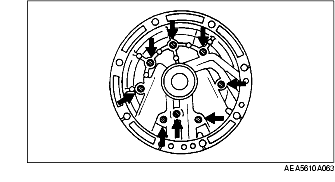

4. Apply ATF to the oil pump housing and install it to the oil pump cover.

Tightening torque

7.0-11.0 N·m {72-112 kgf·cm, 63-97 in·lbf}
