CONTROL VALVE BODY DISASSEMBLY
BHE051321100A03

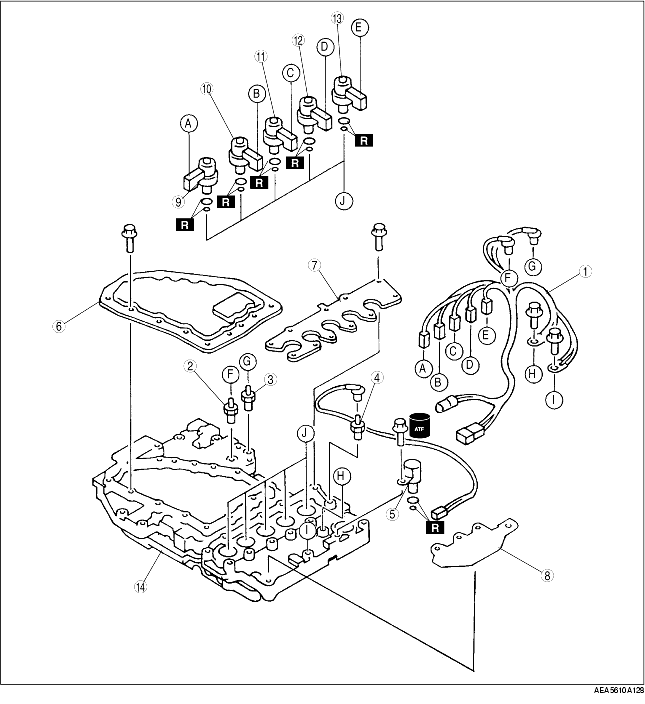

1. Disassemble in the order indicated in the table.
1
Harness component
2
Oil pressure switch B
3
Oil pressure switch C
4
Oil pressure switch F
5
Pressure control solenoid
6
Oil strainer
7
Fix plate
8
Harness bracket
9
Shift solenoid A
10
Shift solenoid B
11
TCC solenoid
12
Shift solenoid C
13
Shift solenoid F
14
Control valve body
