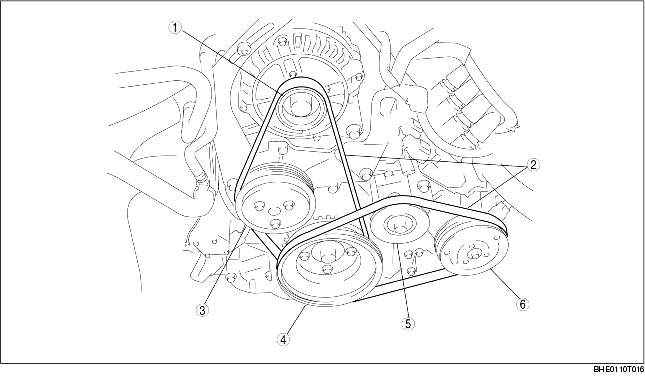

• The V-ribbed drive belts are composed of two belts, one that drives the generator and the water pump, and another that drives the A/C compressor. Serviceability has been improved from this simple layout based on the motorization of the air pump and P/S pump that were formerly driven by drive belts.
|
1
|
Generator pulley
|
|
2
|
Drive belt
|
|
3
|
Water pump pulley
|
|
4
|
Eccentric shaft pulley
|
|
5
|
Tensioner pulley
|
|
6
|
A/C compressor pulley
|
