• The use of mount rubber to support areas under the engine where there is less vibration as well as oil-filled mount rubber has reduced engine vibration.
• With the adoption of aluminum engine mount brackets, weight reduction have been achieved.
|

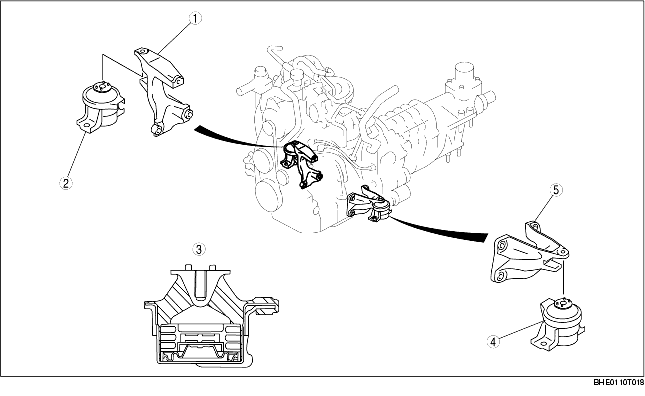

1
|
Engine mount bracket (RH)
|
|
2
|
Engine mount rubber (RH)
|
|
3
|
Engine mount rubber
|
|
4
|
Engine mount rubber (LH)
|
|
5
|
Engine mount bracket (LH)
|
