• The special steel used for the stationary gear is processed with ion nitriding for improved strengthening against fatigue on the tooth surfaces.
• The main bearing is pressed into the stationary gear. Rotation lock of this bearing is done with a screw for the high power and a rotation lock tab for the standard power.
• A needle bearing and thrust plate have been assembled in the front stationary gear for regulation of the eccentric shaft end play.
|

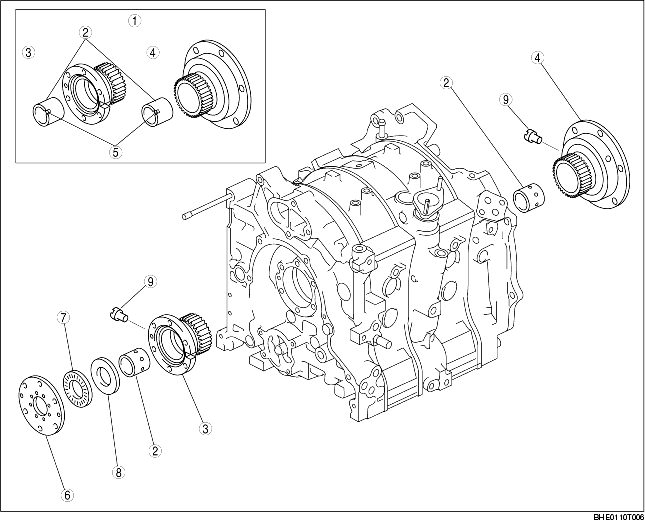

1
|
Stationary gear (standard power)
|
|
2
|
Main bearing
|
|
3
|
Front stationary gear
|
|
4
|
Rear stationary gear
|
|
5
|
Rotation lock tab
|
|
6
|
Plate
|
|
7
|
Needle bearing
|
|
8
|
Thrust plate
|
|
9
|
Screw (high power)
|
