• The special cast iron rotors have a hollow interior structure.
• Reduction in rotor weight has been achieved by reducing the thickness of the ribs in the rotor interior.
• The outer surfaces of the rotor include rotor recesses that serve as the combustion chambers. (Bathtub shape)
• A rotor bearing has been installed to the interior wall of the central axial area because the wall rubs against the eccentric shaft.
• Flank cuts are located at the corners of the rotor to delay exhaust closing timing by approx. 15 degrees, improving exhaust efficiency.
|

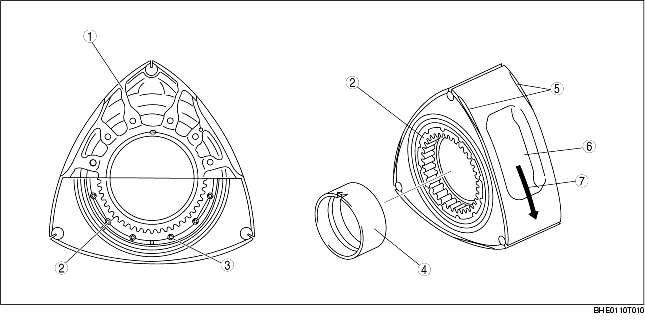

1
|
Rib
|
|
2
|
Internal gear
|
|
3
|
Spring pin
|
|
4
|
Rotor bearing
|
|
5
|
Flank cut
|
|
6
|
Rotor recess
|
|
7
|
Direction of rotor rotation
|
