ENGINE OIL LEVEL INSPECTION

1. Position the vehicle on level ground.

2. Warm up the engine.

3. Stop the engine and allow approx. 5 min before continuing.

4. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION.)

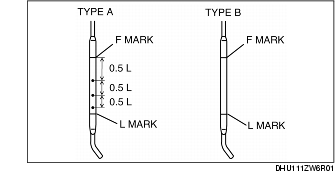

5. Remove the dipstick and verify that the oil level is between the F and L marks on the dipstick.

• If the oil level is below the L mark, add oil.

Note

• The TYPE A dipstick is graduated in 0.5 L intervals as a reference for oil replenishment.

6. Install the dipstick.

7. Install the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION.)
