• Plastic cooling fans and radiator cowling have been adopted for weight reduction.
|

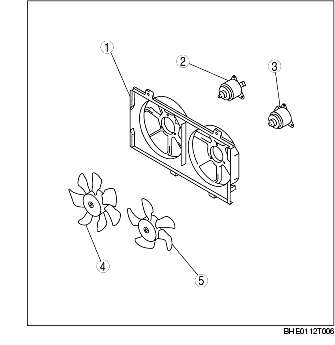

1
|
Radiator cowling
|
|
2
|
Cooling fan motor No.2
|
|
3
|
Cooling fan motor No.1
|
|
4
|
Cooling fan No.2
|
|
5
|
Cooling fan No.1
|
• Both cooling fans and cooling fan motors are attached to the radiator cowling.
• Electric motor type cooling fans are operated by the fan control signal from the PCM.
• Cooling fans No.1 and No.2 operate simultaneously according to the engine coolant temperature and whether the A/C is on or off. Two- stage control has been adopted to the cooling fan with high and low speed rotation allowing noise reduction and power savings. (See ELECTRICAL FAN CONTROL OPERATION.)
