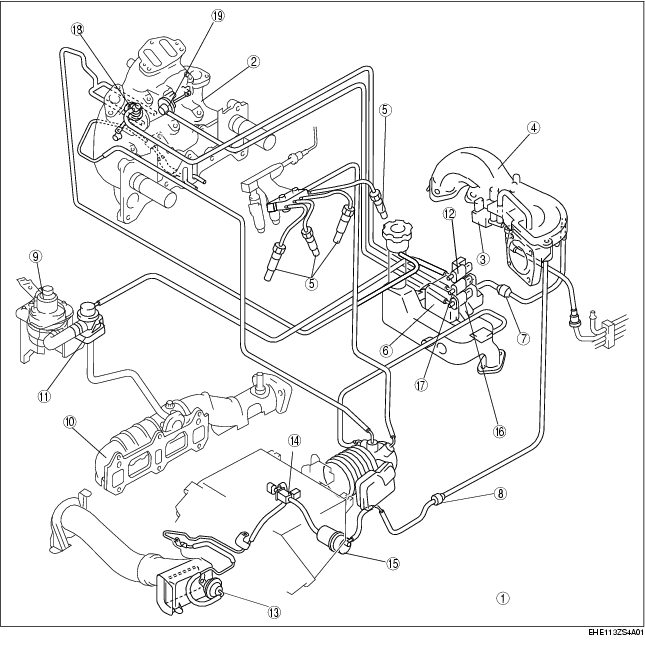

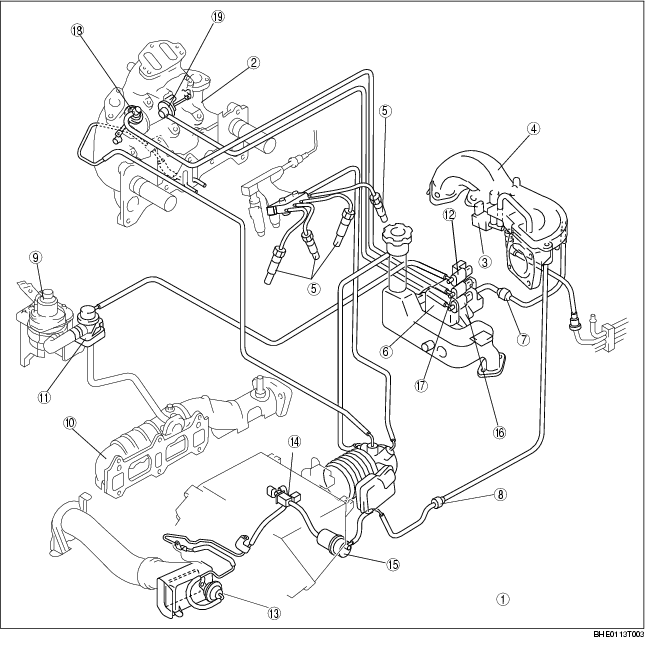

INTAKE-AIR SYSTEM HOSE ROUTING DIAGRAM
id011300100400
Applied VIN (assumed):
JM0 FE13100 100001-JM0 FE13100 104448
JMZ SE1736*# 100001-JMZ SE1736*# 139814
JMZ SE17N2*# 100001-JMZ SE17N2*# 139814
JMZ SE17360# 100001-JMZ SE17360# 139814
JMZ SE17N20# 100001-JMZ SE17N20# 139814
Applied VIN(assumed):
JM0 FE13100 104449-
JMZ SE1736*# 139815-
JMZ SE17N2*# 139815-
JMZ SE17360# 139815-
JMZ SE17N20# 139815-
|
1
|
Illustration shows 13B-MSP (High power)
|
|
2
|
Intake manifold
|
|
3
|
Purge solenoid valve
|
|
4
|
Extension manifold (upper)
|
|
5
|
Metering oil nozzle
|
|
6
|
Vacuum chamber
|
|
7
|
One-way check valve
|
|
8
|
One-way check valve (13B-MSP (High power))
|
|
9
|
AIR pump
|
|
10
|
Exhaust manifold
|
|
11
|
AIR control valve
|
|
12
|
AIR solenoid valve
|
|
13
|
VFAD actuator (13B-MSP (High power))
|
|
14
|
VFAD solenoid valve (13B-MSP (High power))
|
|
15
|
Vacuum chamber (13B-MSP (High power))
|
|
16
|
VDI solenoid valve
|
|
17
|
SSV solenoid valve
|
|
18
|
SSV actuator
|
|
19
|
VDI actuator
|
