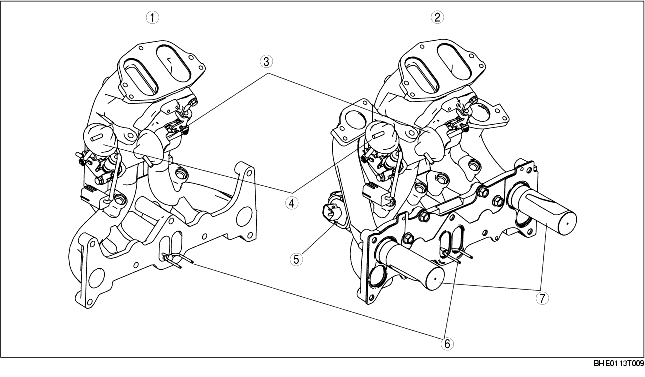

• Composed of the SSV, VDI valve, APV (13B-MSP (High Power)), APV motor (13B-MSP (High Power)), jet air fuel mixing nozzles, and body.
|
1
|
13B-MSP (Standard power)
|
|
2
|
13B-MSP (High power)
|
|
3
|
VDI valve
|
|
4
|
SSV
|
|
5
|
APV motor
|
|
6
|
Jet air fuel mixing nozzle
|
|
7
|
APV
|
