THROTTLE BODY FUNCTION


id011300101500

• An electronic throttle valve has been adopted which opens and closes the throttle valve with the actuator according to a signal from the PCM. It enables precise intake air control at all engine speed ranges.

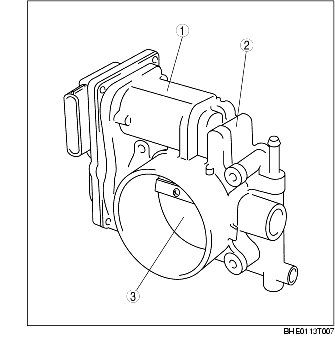

1
Actuator
2
Throttle body
3
Throttle valve
