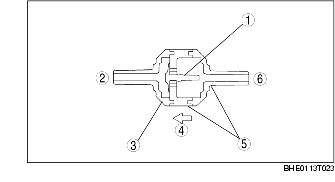

CHECK VALVE CONSTRUCTION/OPERATION


id011300663800

• Composed of the main body and valve.

• Air can only flow from the vacuum chamber to the intake manifold.

1
Valve
2
Intake manifold side
3
Green
4
Air flow direction
5
White
6
Vacuum chamber side
