SECONDARY AIR INJECTION (AIR) PUMP CONSTRUCTION/OPERATION
id011600664500
|
1
|

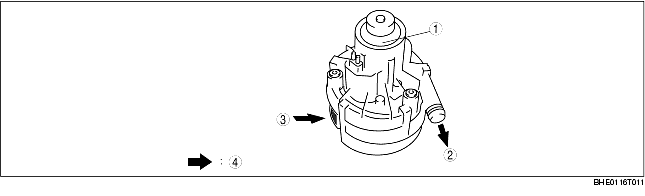

Motor
|
|
2
|
To AIR control valve
|
|
3
|
From atmosphere
|
|
4
|
Secondary air flow
|
• Mainly consists of a DC motor and fan.
• When the AIR pump relay is turned on due to a PCM signal, the motor drives the pump fan to discharge secondary air.
|

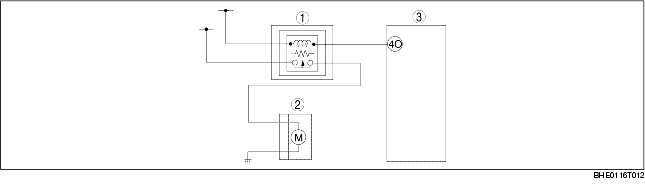

1
|
AIR pump relay
|
|
2
|
AIR pump
|
|
3
|
PCM
|
