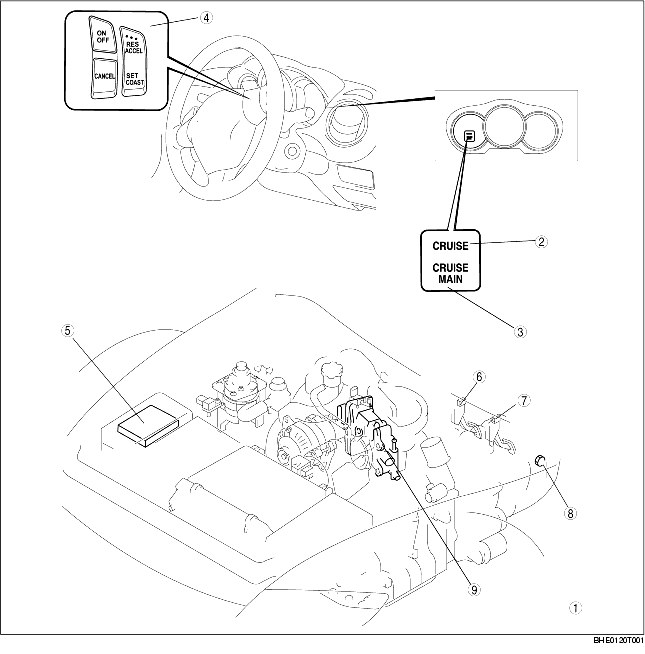

CRUISE CONTROL SYSTEM STRUCTURAL VIEW
id012000145300
1
Illustration shows 13B-MSP (High power)
2
Cruise control indicator light
3
Cruise control main indicator light
4
Cruise control switch
5
PCM
6
Brake switch
7
CPP switch
8
Neutral switch
9
Throttle valve actuator
