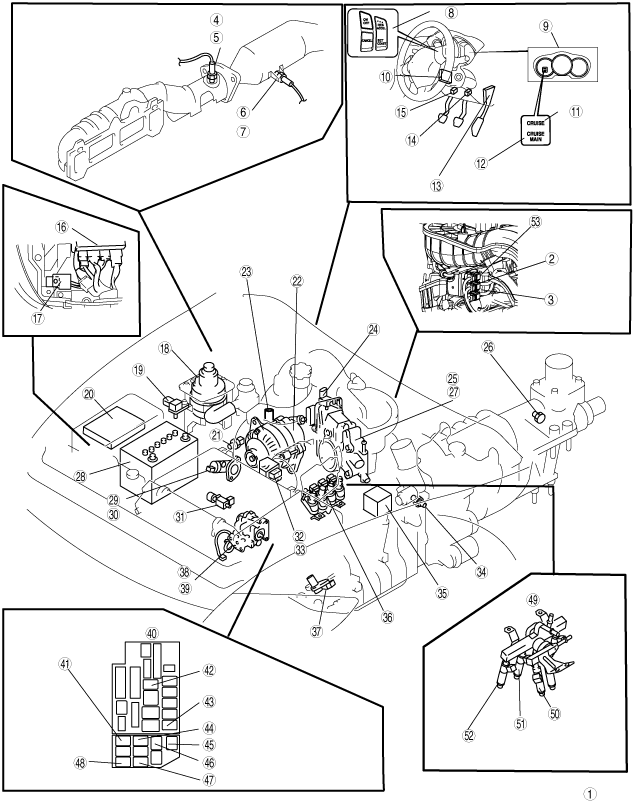

ENGINE CONTROL SYSTEM STRUCTURAL VIEW
id014000100200
bhe0140t001
|
|
1
|
Illustration shows 13B-MSP (High power)
|
|
2
|
SSV solenoid valve
|
|
3
|
VDI solenoid valve
|
|
4
|
A/F sensor
|
|
5
|
A/F sensor heater
|
|
6
|
HO2S
|
|
7
|
HO2S heater
|
|
8
|
Cruise control switch
|
|
9
|
Instrument cluster
|
|
10
|
TCM (AT)
|
|
11
|
Cruise control indicator light
|
|
12
|
Cruise control main indicator light
|
|
13
|
APP sensor (main/sub)
|
|
14
|
Brake switch
|
|
15
|
CPP switch (MT)
|
|
16
|
EPS control unit
|
|
17
|
AIR pump relay
|
|
18
|
AIR pump
|
|
19
|
BARO sensor
|
|
20
|
PCM
|
|
21
|
ECT sensor
|
|
22
|
Generator
|
|
23
|
SSV switch
|
|
24
|
Purge solenoid valve
|
|
25
|
Throttle valve actuator
|
|
26
|
Neutral switch (MT)
|
|
27
|
TP sensor (main/sub)
|
|
28
|
Battery
|
|
29
|
APV motor
|
|
30
|
APV position sensor (13B-MPS (High power))
|
|
31
|
VFAD solenoid valve (13B-MPS (High power))
|
|
32
|
IAT sensor
|
|
33
|
MAF sensor
|
|
34
|
KS
|
|
35
|
DSC HU/CM
|
|
36
|
Ignition coil (T/F, T/R, L/F, L/R)
|
|
37
|
Eccentric shaft position sensor
|
|
38
|
Stepping motor (metering oil pump)
|
|
39
|
Metering oil pump switch
|
|
40
|
Main fuse block
|
|
41
|
Cooling fan relay No.2
|
|
42
|
Main relay
|
|
43
|
Drive-by-wire relay
|
|
44
|
Cooling fan relay No.1
|
|
45
|
Cooling fan relay No.3
|
|
46
|
A/C relay
|
|
47
|
Fuel pump relay
|
|
48
|
Fuel pump speed control relay
|
|
49
|
Fuel injector
|
|
50
|
Primary 1
|
|
51
|
Primary 2 (13B-MPS (High power))
|
|
52
|
Secondary
|
|
53
|
AIR solenoid valve
|
