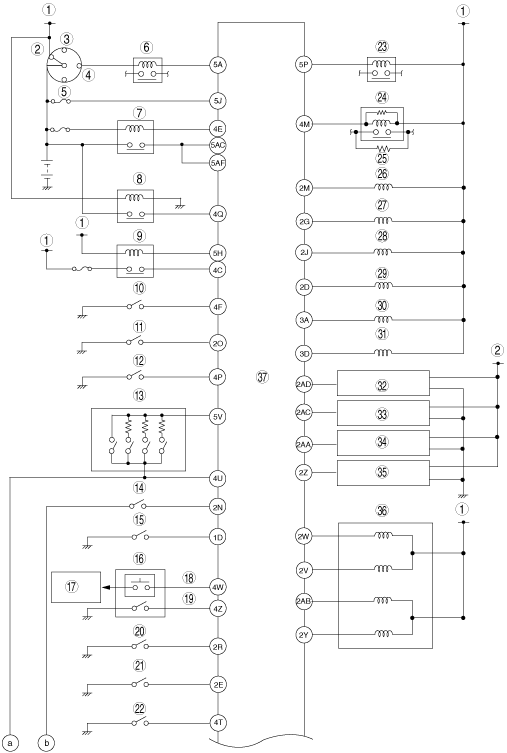

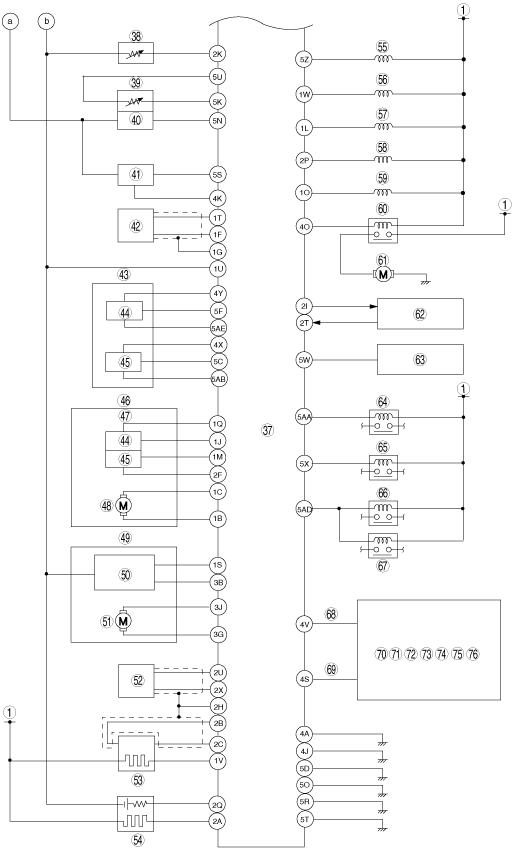

ENGINE CONTROL SYSTEM WIRING DIAGRAM
id014000100400
bhe0140t003
|
bhe0140t004
|
|
1
|
B+
|
|
2
|
IG1
|
|
3
|
IG2
|
|
4
|
START
|
|
5
|
ACC
|
|
6
|
Starter relay
|
|
7
|
Main relay
|
|
8
|
Ignition relay
|
|
9
|
Drive-by-wire relay
|
|
10
|
CPP switch (MT)
|
|
11
|
Neutral switch (MT)
|
|
12
|
Brake switch (With cruise control system)
|
|
13
|
Cruise control switch (With cruise control system)
|
|
14
|
Metering oil pump switch
|
|
15
|
SSV switch
|
|
16
|
Refrigerant pressure switch
|
|
17
|
A/C amplifier
|
|
18
|
Hi, Lo
|
|
19
|
Medium
|
|
20
|
Oil level switch
|
|
21
|
Oil pressure switch
|
|
22
|
Coolant level switch
|
|
23
|
Fuel pump relay
|
|
24
|
Fuel pump speed control relay
|
|
25
|
Fuel pump resistor
|
|
26
|
Fuel injector (FP)
|
|
27
|
Fuel injector (FS)
|
|
28
|
Fuel injector (RP)
|
|
29
|
Fuel injector (RS)
|
|
30
|
Fuel injector (FP2) (13B-MSP (High power))
|
|
31
|
Fuel injector (RP2) (13B-MSP (High power))
|
|
32
|
Ignition coil (T/F)
|
|
33
|
Ignition coil (T/R)
|
|
34
|
Ignition coil (L/F)
|
|
35
|
Ignition coil (L/R)
|
|
36
|
Metering oil pump
|
|
37
|
PCM
|
|
38
|
ECT sensor
|
|
39
|
IAT sensor
|
|
40
|
MAF sensor
|
|
41
|
BARO sensor
|
|
42
|
KS
|
|
43
|
APP sensor
|
|
44
|
No.1
|
|
45
|
No.2
|
|
46
|
Throttle body
|
|
47
|
TP sensor
|
|
48
|
Throttle actuator
|
|
49
|
APV motor (13B-MSP (High power))
|
|
50
|
APV position sensor
|
|
51
|
APV motor
|
|
52
|
Eccentric shaft position sensor
|
|
53
|
A/F sensor
|
|
54
|
HO2S
|
|
55
|
VFAD solenoid valve (13B-MSP (High power))
|
|
56
|
VDI solenoid valve
|
|
57
|
SSV solenoid valve
|
|
58
|
Purge solenoid valve
|
|
59
|
AIR solenoid valve
|
|
60
|
AIR pump relay
|
|
61
|
AIR pump
|
|
62
|
Generator
|
|
63
|
A/C amplifier
|
|
64
|
A/C relay
|
|
65
|
Cooling fan relay No.1
|
|
66
|
Cooling fan relay No.2
|
|
67
|
Cooling fan relay No.3
|
|
68
|
CAN_H
|
|
69
|
CAN_L
|
|
70
|
Other module
|
|
71
|
EPS control module
|
|
72
|
TCM
|
|
73
|
DSC HU/CM
|
|
74
|
Keyless Unit
|
|
75
|
Steering Angle Sensor
|
|
76
|
Instrument Cluster
|
