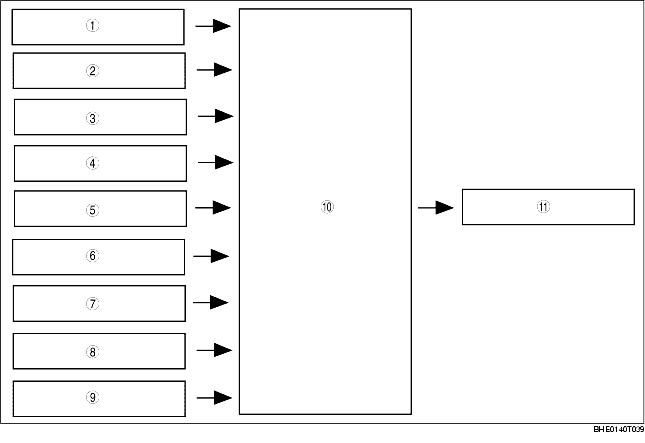

GENERATOR CONTROL BLOCK DIAGRAM

id014000172400

• The PCM determines the engine operation and electrical load conditions based on input signals, and controls energization time of the generator field coil.

1
Generator (Terminal P: Stator coil)
2
Battery positive voltage
3
Eccentric shaft position sensor
4
ECT sensor
5
Vehicle speed signal (CAN signal)
6
IAT sensor
7
Brake switch No.1 (CAN signal)
8
A/C amplifier (A/C switch signal)
9
TCM (AT) (CAN SIGNAL)
10
PCM
11
Generator (Terminal D: Field coil)
