• The BARO sensor is installed on the secondary air injection pump bracket.
• The piezoelectric element is enclosed in the sensor and the electric potential difference changes as the BARO drops. The output voltage lowers as the BARO drops.
|

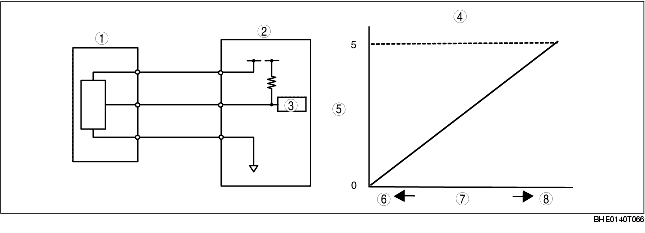

1
|
BARO sensor
|
|
2
|
PCM
|
|
3
|
CPU
|
|
4
|
BARO sensor output voltage characteristic
|
|
5
|
Output voltage (V)
|
|
6
|
Low
|
|
7
|
BARO
|
|
8
|
High
|
