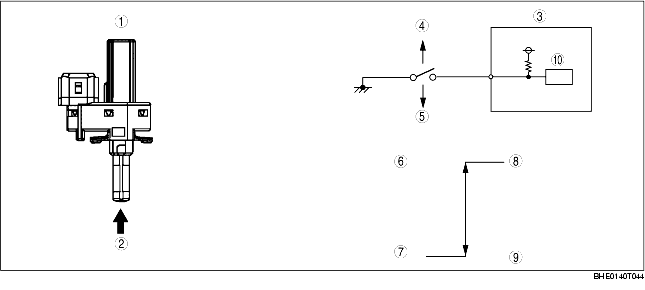

• When the clutch pedal is depressed, the contact closes (ON) and the PCM detects a voltage of 0 V. When the clutch pedal is not depressed, the contact opens (OFF) the PCM detects a voltage of 12 V.
|
1
|
CPP switch
|
|
2
|
Push OFF
|
|
3
|
PCM
|
|
4
|
Clutch pedal not depressed (OFF)
|
|
5
|
Clutch pedal depressed (ON)
|
|
6
|
Clutch pedal depressed (ON)
|
|
7
|
Clutch pedal not depressed (OFF)
|
|
8
|
No load
|
|
9
|
Load
|
|
10
|
CPU
|
