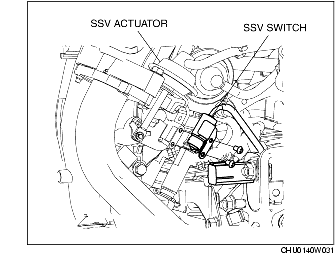

SECONDARY SHUTTER VALVE (SSV) SWITCH REMOVAL/INSTALLATION

1. Disconnect the SSV switch connector.

2. Remove the SSV installation screws and remove the SSV switch.

3. Install in the reverse order of removal.

SSV switch tightening torque

1.3-1.9 N·m {14-19 kgf·cm, 12-16 in·lbf}
