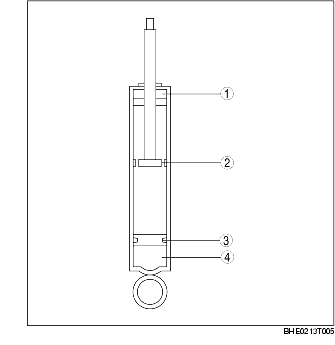

FRONT SHOCK ABSORBER CONSTRUCTION
id021300629900
• The high-pressure gas-filled monotube shock absorber minimizes cavitation and provides stable damping force even during hard driving.
-
– The large-diameter piston ensures superior response during minute strokes, providing consistent damping force and stroke feeling.
-
– The enlarged piston port area also contributes to the improvement of riding comfort.
|
1
|
Oil seal
|
|
2
|
Piston
|
|
3
|
Free piston
|
|
4
|
High-pressure gas
|
