REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION


id041500800100

1. Remove the trunk side trim.

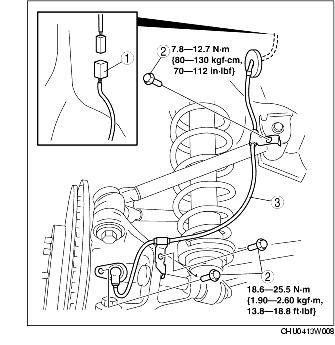

2. Remove in the order indicated in the table.

1
Connector
2
Bolt
3
Rear ABS wheel-speed sensor

3. Install in the reverse order of removal.
