DLC-2 OUTLINE

id050200100900

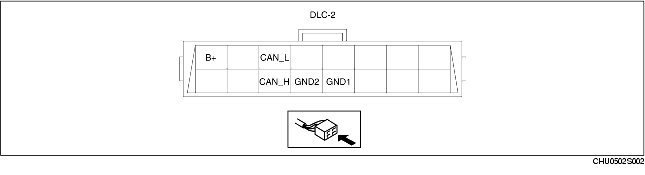

• The DLC-2 located in the drive compartment is a standard service connector as defined by OBD-II regulations.

Terminal

Function

GND1
Body ground terminal
GND2
Serial communication ground terminal
CAN_H
Serial communication terminal (Hi)
CAN_L
Serial communication terminal (Lo)
B+
Battery power supply terminal
